Product Overview
The Solar System for Home On Grid converts solar irradiance into grid-compatible AC power for household consumption and controlled grid export.
It integrates Tier-1 monocrystalline PV modules and multi-MPPT inverter technology to support stable energy generation under variable sunlight and partial shading conditions.
Specifications
The following specifications are based on standard residential grid-tied operating conditions for rooftop solar applications.
|
Model Number |
Solar system for home on grid |
|
Application |
Residential Rooftop / Domestic Power |
|
Solar Panel Type |
Monocrystalline Silicon (PERC / TopCon High-Efficiency) |
|
System Type |
On-Grid (Hybrid-Ready / Storage Upgradeable) |
|
Inverter MPPT Efficiency |
>99% (Built-in) |
|

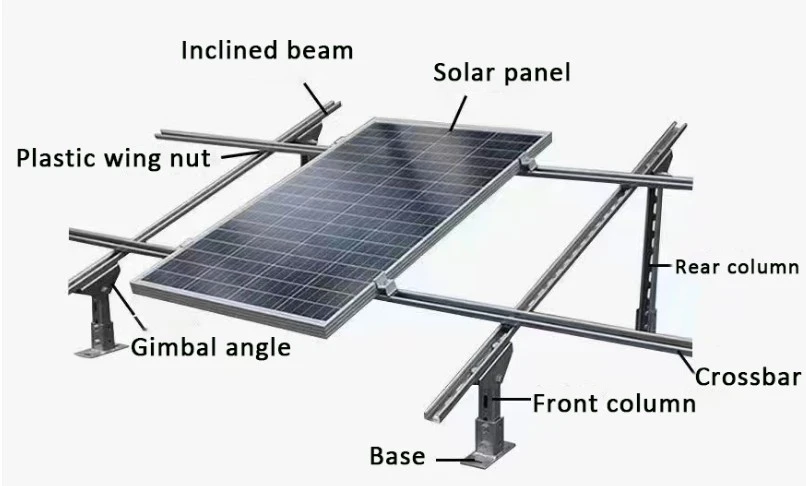

Mounting Structure |
Standard Roof Rail Kits (Wind/Snow Rated) |
|
Output Frequency |
50/60Hz |
|
Certificate |
CE IEC TUV |
|
Communication Interface |
WiFi/4G/RS485/CAN |
|
Inverter Options |
Deye SUN-5K to 12K-SG04LP3 (Three-Phase Hybrid Series for Storage Compatibility) (Optional: SUN-5K to 25K-G03 for pure On-Grid; 50K-110K for Commercial) |
Core Advantages
MPPT technology helps optimize energy harvesting under variable sunlight and partial shading conditions.
High-efficiency inverter (up to 98%) helps reduce DC-to-AC conversion losses during operation.
Real-time monitoring via WiFi, 4G, or RS485 supports remote system status tracking and maintenance.
System is designed for compliance with CE, IEC, and TÜV certification requirements for international markets.
Modular system design supports flexible installation on different residential roof structures.

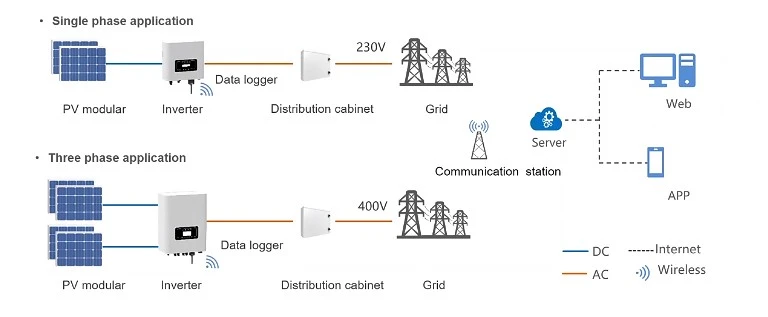

System Architecture
The system consists of:
Monocrystalline solar PV modules
Grid-tied inverter system (Deye SUN series or equivalent)
MPPT control and power management system
Grid connection and monitoring system
The inverter handles MPPT tracking, DC-to-AC conversion, and grid synchronization in real time.
Communication interfaces: WiFi / 4G / RS485 / CAN
System Value & Energy Logic
The system is designed to optimize residential electricity usage by increasing self-consumption of solar energy and enabling controlled export to the grid under net metering policies.
MPPT technology continuously adjusts operating conditions to maximize energy yield from PV modules under changing weather conditions.
Factory & Logistics
<0.1% DOA Rate: Every inverter configuration undergoes a 4-hour factory simulation under full load before packing.
Safe Maritime Packing: Modules are packed on heavy-duty vertical pallets with structural corner protection to prevent shipping damage.
Mixed Loading: We support bundling modules, inverters, and mounting kits into a single container to optimize your freight costs.
FAQ
Hot Tags: solar system for home on grid, China solar system for home on grid manufacturers, suppliers, factory, 100kw On Grid Solar Power System, 5kw Home Stand Alone Solar Power System, 80kw Industrial and Commercial Off Grid Solar Panel System, on grid solar power system, Solar Energy On Grid System, Solar System for Home On Grid
|
Model Number |
solar system for home on grid |
|
Application |
Home |
|
Solar Panel Type |
Monocrystalline Silicon |
|
Battery Type |
Lithium Battery adjustable |
|
Controller Type |
MPPT |
|
Mounting Type |
Roof Mounting |
|
Output Frequency |
50/60Hz |
|
Certificate |
CE IEC TUV |
|
Controller |
MPPT Solar Charge Controller |
|
Communication Interface |
WiFi/4G/RS485/CAN |
|
INVERTER |
Deye SUN-70/75/80/90/100/110K-G03 |
