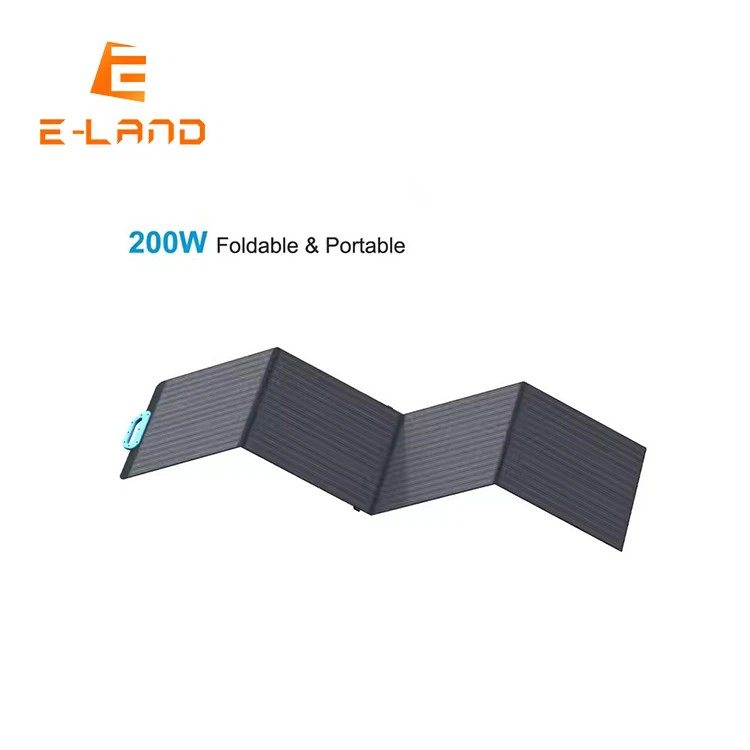

The 200 Watt Foldable Solar Panel is designed for portable and off-grid power applications including RV systems, outdoor camping, emergency backup, and commercial solar kits.
Product Model Comparison (PV100 / PV200)
|
Specification |
PV100 (100W) |
PV200 (200W) |
|
Peak Power (Pm) |
100W |
200W |
|
Cell Type |
Monocrystalline silicon |
Monocrystalline silicon |
|
Cell Efficiency |
Up to 23.4% |
Up to 23.4% |
|
Voltage at Max Power (Vmp) |
20.5V |
20.4V |
|
Current at Max Power (Imp) |
4.9A |
9.7A |
|
Open Circuit Voltage (Voc) |
24.6V |
26.1V |
|
Short Circuit Current (Isc) |
5.8A |
10.3A |
|
Unfolded Size |
1135 × 608 mm |
590 × 2265 mm |
|
Folded Size |
608 × 582.5 × 35 mm |
590 × 630 mm |
|
Weight |
4.9 kg |
7.3 kg |
|
Warranty |
12 Months |
12 Months |
Application Scenarios
The PV Series Foldable Solar Panels are widely used in:
RV and caravan power systems
Outdoor camping and hiking energy kits
Emergency and disaster relief power supply
Portable solar generator integration
Wholesale outdoor electronics distribution
OEM / Wholesale Support
We support global distributors and brand owners with flexible OEM/ODM services for the PV Series:
Logo customization
Packaging design for retail and Amazon-ready kits
Cable length and connector customization (MC4 / DC / Anderson)
Electrical configuration optimization for battery systems
Private label production for long-term distribution projects
Quality Control
Each PV series panel undergoes strict inspection before shipment:
Electrical performance testing (Vmp / Imp / Voc / Isc validation)
Lamination and surface durability inspection
Output stability testing under load conditions
Full visual inspection before export packaging
Warranty: 12 months limited warranty covering manufacturing defects under normal use conditions.
FAQ
Hot Tags: 200 watt foldable solar panel, China 200 watt foldable solar panel manufacturers, suppliers, factory, 200 Watt Foldable Solar Panel, foldable solar panel
| Model: | PV100 | PV200 |
| Peak Power(Pm): | 100W | 200W |
| Cell type: | Monocrystalline silicon | Monocrystalline silicon |
| Cell efficiency: | Up to 23.4% | Up to 23.4% |
| Voltage at max power (Vmp): | 20.5V | 20.4V |
| Current at max power (Imp): | 4.9A | 9.7A |
| Open circuit voltage(Voc): | 24.6V | 26.1V |
| Short circuit current(Isc): | 5.8A | 10.3A |
| Dimension(unfolded): | 1135*608MM/44.7*23.9inch | 590*2265mm/23.2*89.2inch |
| Dimension(folded): | 608*582.5*35MM/23.9*22.9*1.4inch | 590*630mm/23.2*24.8inch |
| Weight: | 4.9kg/10.8lbs | 7.3kg/16.1lbs |
| Warranty: | 12 Months | 12 Months |
