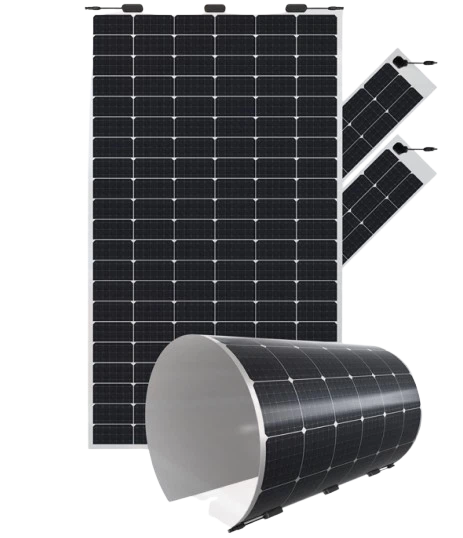

The 100 Watt Flexible Solar Panel is a lightweight, high-efficiency solar module designed for curved, mobile, and off-grid installations where traditional rigid panels cannot be used. It is widely adopted in RV, marine, and portable energy systems due to its flexibility, durability, and stable output performance.
Technical Specifications
Model Comparison
|
Model |
100W-12M |
160W-12M |
|
Peak Power (Pm) |
100W |
160W |
|
Voltage at Max Power (Vmp) |
13.5V |
23.20V |
|
Current at Max Power (Imp) |
7.41A |
6.9A |
|
Open Circuit Voltage (Voc) |
16.37V |
27.29V |
|
Short Circuit Current (Isc) |
7.39A |
7.38A |
|
Module Efficiency |
19.63% |
19.57% |
Mechanical Data
|
Parameter |
100W-12M |
160W-12M |
|
Dimensions |
645 × 790 × 2.5 mm |
1035 × 790 × 2.5 mm |
|
Dimensions (inch) |
25.39 × 31.1 × 0.1 in |
40.75 × 31.1 × 0.1 in |
|
Weight |
1.86 kg (4.1 lbs) |
3.9 kg (8.6 lbs) |
Product Structure & Materials
The 100 Watt Flexible Solar Panel uses a high-transmittance front layer (ETFE/PET), encapsulated monocrystalline solar cells, and reinforced polymer backsheet to ensure durability, UV resistance, and long-term outdoor performance.
Quality Control
Each 100 Watt Flexible Solar Panel undergoes strict inspection before shipment:
EL (electroluminescence) defect detection
Power output flash testing
Waterproof sealing inspection
Mechanical and bending durability checks
OEM & Wholesale Supply
OEM branding and private label available
Stable mass production capability
Flexible customization (connectors, cable length, packaging)
Tiered pricing for bulk orders
Packaging
Each 100 Watt Flexible Solar Panel is packed with reinforced protective materials to prevent bending or surface damage during transportation. Bulk shipments use export-grade cartons and palletized packaging.
FAQ
Hot Tags: 100 watt flexible solar panel, China 100 watt flexible solar panel manufacturers, suppliers, factory, 100 Watt Flexible Solar Panel, flexible solar panel, solar panel
| Model: | 100W-12M |
1600W-12M |
| Peak Power(Pm): | 100W | 160W |
| Voltage at max power (Vmp): | 13.5V |
23.20V
|
| Current at max power (Imp): | 7.41A | 6.9A |
| Open circuit voltage(Voc): | 16.37V |
27.29V
|
| Short circuit current(Isc): | 7.39A | 7.38A |
| Module Efficiency(%): | 19.63 |
19.57
|
| Dimension: |
645*790*2.5mm/25.39*31.1*0.1inch |
1035*790*2.5mm/40.75*31.1*0.1inch |
| Weight: | 1.86kg/4.1lbs | 3.9kg/8.6lbs |
