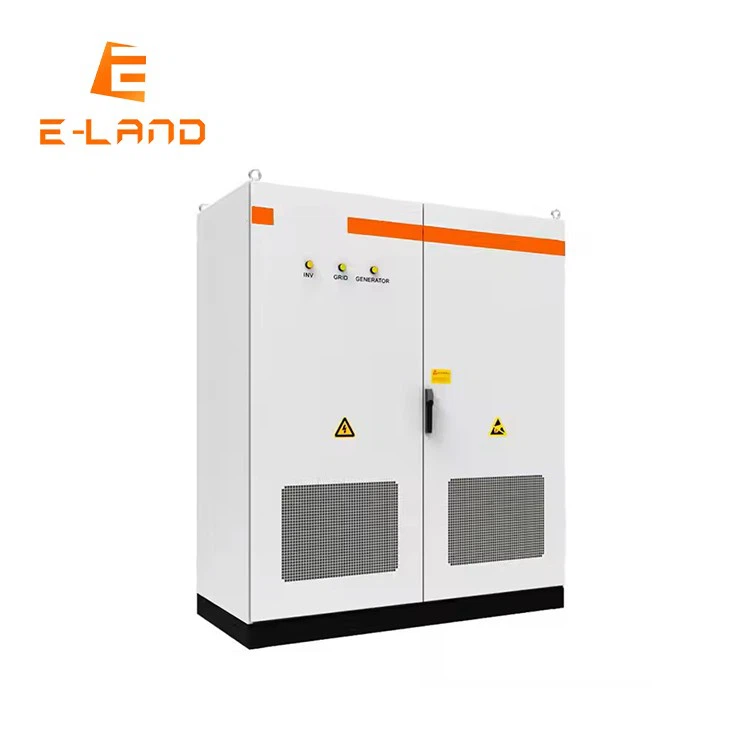

A Commercial and Industrial Energy Storage system helps businesses reduce electricity costs, improve energy stability, and maximize renewable energy utilization.
Designed for factories, industrial parks, commercial buildings, and microgrid projects, this system integrates LiFePO4 battery technology with advanced power conversion and energy management systems to deliver reliable power storage and flexible energy control.
With modular configurations from 30kW to 150kW, the system supports peak shaving, solar integration, load shifting, and backup power, making it suitable for both medium and large-scale energy projects.
System Features
Intelligent Energy Management
The integrated energy management system monitors battery status, system performance, and energy usage in real time through a touchscreen interface and communication protocols such as RS485 and CAN.
Flexible Grid and Off-Grid Operation
The system supports both grid-connected and off-grid modes with automatic switching in ≤10 ms, ensuring uninterrupted power supply during grid outages.
Solar and Battery Integration
PV input supports up to 225kWp, allowing seamless integration with solar generation systems to store excess energy and improve renewable utilization.
Technical Specifications
The Commercial and Industrial Energy Storage system is available in multiple power configurations to support different project sizes.
AC (Grid-Connected) Parameters
|
Model |
HPS30 |
HPS50 |
HPS100 |
HPS150 |
|
Apparent Power |
33 kVA |
55 kVA |
110 kVA |
165 kVA |
|
Rated Power |
30 kW |
50 kW |
100 kW |
150 kW |
|
Rated Voltage |
400 V |
400 V |
400 V |
400 V |
|
Rated Current |
43 A |
72 A |
144 A |
217 A |
|
Voltage Range |
360–440 V |
360–440 V |
360–440 V |
360–440 V |
|
Frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
|
THDI |
<3% |
<3% |
<3% |
<3% |
|
Power Factor |
0.8 lagging – 0.8 leading |
same |
same |
same |
|
AC Connection |
3/N/PE |
3/N/PE |
3/N/PE |
3/N/PE |
AC (Off-Grid) Parameters
|
Model |
HPS30 |
HPS50 |
HPS100 |
HPS150 |
|
Apparent Power |
33 kVA |
55 kVA |
110 kVA |
165 kVA |
|
Rated Power |
30 kW |
50 kW |
100 kW |
150 kW |
|
Rated Voltage |
400 V |
400 V |
400 V |
400 V |
|
THDU |
≤2% linear load |
|||
|
Frequency |
50/60 Hz |
|||
|
Overload Capability |
110% (10 min), 120% (1 min) |
DC (Battery & PV) Parameters
|
Parameter |
HPS30 |
HPS50 |
HPS100 |
HPS150 |
|
Max PV Voltage |
1000V DC |
1000V DC |
1000V DC |
1000V DC |
|
Max PV Power |
45 kWp |
75 kWp |
150 kWp |
225 kWp |
|
MPPT Voltage Range |
480–800V DC |
|||
|
Battery Voltage Range |
352–600 V |
|||
|
Battery Voltage at Max Charge |
450–600 V |
500–600 V |
500–600 V |
500–600 V |
|
Max Charge Power |
45 kW |
75 kW |
150 kW |
225 kW |
|
Max Discharge Power |
33 kW |
55 kW |
110 kW |
165 kW |
|
Max Charge Current |
100 A |
150 A |
300 A |
450 A |
|
Max Discharge Current |
93 A |
156 A |
313 A |
467 A |
General System Information
|
Parameter |
Specification |
|
Protection Level |
IP20 |
|
Cooling |
Forced-air cooling |
|
Noise Level |
<65 dB(A) at 1 m |
|
Operating Temperature |
-25°C to +55°C |
|
Humidity |
0–95% non-condensing |
|
Maximum Altitude |
6000 m (derating above 3000 m) |
|
Transformer |
Built-in transformer |
|
Standby Consumption |
<30 W |
|
On/Off Grid Transfer |
Automatic ≤10 ms |
Physical Specifications
|
Model |
Dimensions (W×H×D) |
Weight |
|
HPS30 |
700 × 1660 × 600 mm |
355 kg |
|
HPS50 |
950 × 1860 × 750 mm |
610 kg |
|
HPS100 |
1200 × 1900 × 800 mm |
948 kg |
|
HPS150 |
1200 × 1900 × 800 mm |
1230 kg |
